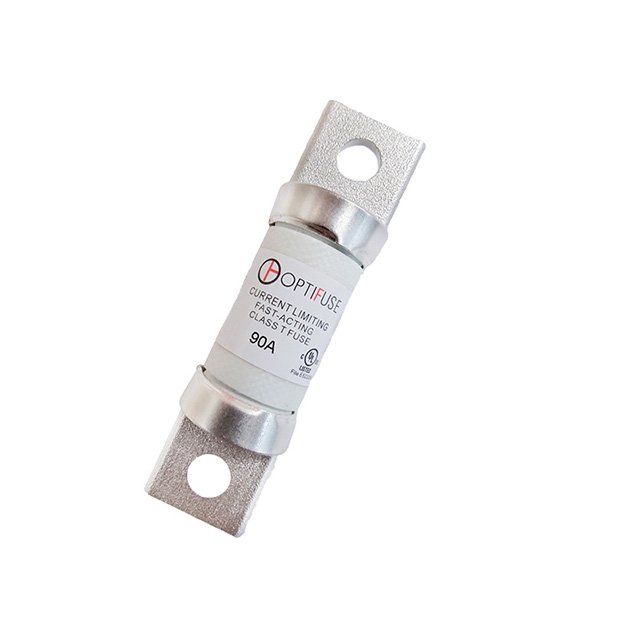

UL Class T – Fast
$55.04 – $593.36Price range: $55.04 through $593.36
OptiFuse F6T – Class T
SKU: F6T
Category: Fuses
OptiFuse’s new UL listed Class T fuses provide fast acting protection combined with high current limiting capabilities for main feeder branch circuit protection (UL 248-15). They are the most compact option available for ratings exceeding 30A.
Class T fuses are designed to protect devices such as load centers, panelboards, switchboards, measuring centers, and other surge-sensitive equipment from both overload and short circuit currents. They can be found in systems such as pumps, HVAC, and power sources.
Rated at 600VAC / 300VDC, these fuses have a 200K amp AC interrupting capacity and a 50K amp DC interrupting capacity. Current ratings range from 1A to 400A.
| Dimensions | 2.95 × 0.82 × 0.82 in |
|---|---|
| Current Rating (A) | 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, 200, 225, 250, 300, 350, 400, 600 |
| Fuse Type | Industrial and UL Fuses |
| Fuse Size/Group | Class T |
| Response Time | Fast |
| Voltage Rating - DC (VDC) | 300 |
| Major Safety Standards | UL/CSA |
| Approval Agency | cULus; UL 248 |
