UL 5x20mm Glass – Slow
Price range: $0.89 through $2.04
OptiFuse TSC / TSC-P – 5 x 20 mm
Sign up to our Newsletter
Subscribe to receive specials via email.
$0.89 – $2.04Price range: $0.89 through $2.04

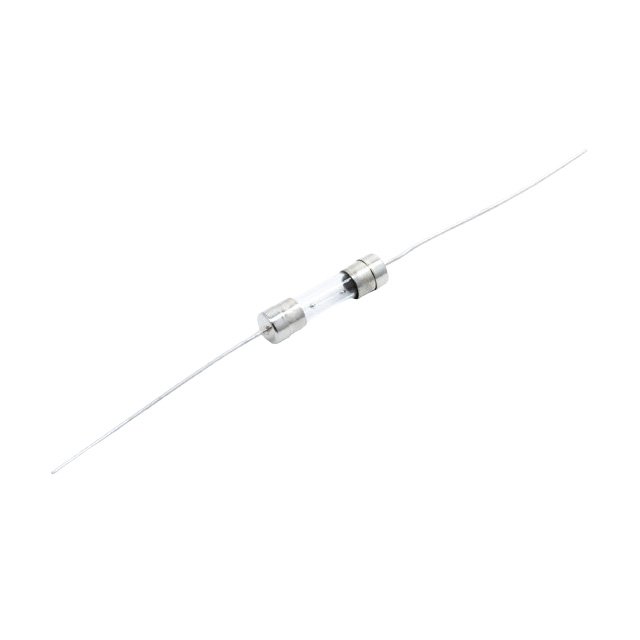

OptiFuse TSC / TSC-P – 5 x 20 mm
20mm long and 5mm in diameter, this fuse is time lag with a glass body and is UL Listed. Available with or without axial leads
Time lag fuses are commonly used in applications where high but harmless inrush currents are needed for brief periods, such as with alternators. This fuse prevents nuisance tripping and opens only when an overcurrent sustains in a circuit.
With a clear body that allows for visual checks of a damaged filament.
NEW: Select products are available in pill boxes.
| Dimensions | 0.2 × 0.2 × 0.79 in |
|---|---|
| Current Rating (A) | 0.125, 0.2, 0.25, 0.3, 0.315, 0.4, 0.5, 0.63, 0.75, 0.8, 1, 1, 1.25, 1.5, 1.6, 2, 2.5, 3, 3.15, 3.5, 3.5, 4, 4, 5, 5, 6, 6.3, 7, 8, 10, 12, 15 |
| Fuse Type | Electronic Glass & Ceramic Fuses |
| Fuse Size/Group | 5 x 20 mm |
| Response Time | Slow |
| Voltage Rating - DC (VDC) | – |
| Major Safety Standards | UL/CSA |
| Approval Agency | cULus; UL 248 |
