Manual Reset – Regular Blade

Name: Manual Reset - Regular Blade
SKU: MRCBP4-PL
Availability: InStock

$10.87

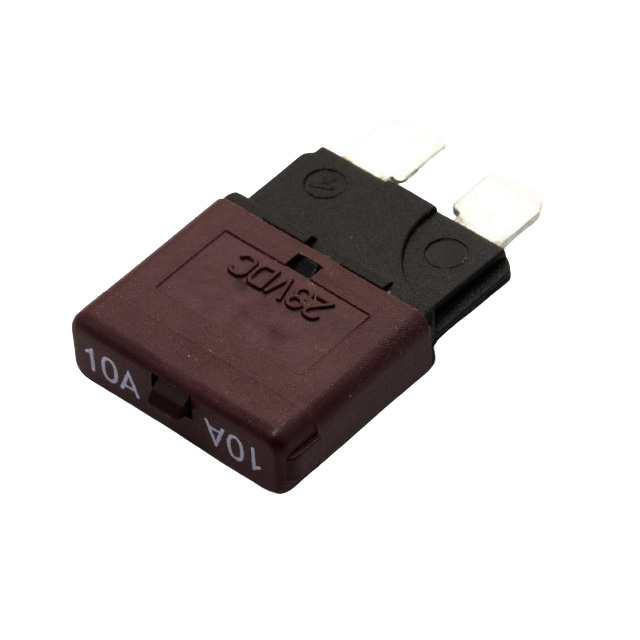

OptiFuse MRCBP4-PL – Blade Style Circuit Breakers

Current Rating (A)

Clear

SKU: MRCBP4-PL Category: Circuit Breakers

Recommended for most commercial applications where downtime can be costly and resettability is needed.
Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Regular (ATO/ATC style) blade fuse, such as the OptiFuse APR and ANR series.
Designed with a thermoplastic body that meets UL 1500 requirements for ignition protection.
NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.

Dimensions	0.76 × 1.27 × 0.24 in
Current Rating (A)	5, 6, 7.5, 8, 10, 15, 20, 25, 30
Reset Type	Manual Reset – Type III
Circuit Breaker Type	Blade Style Circuit Breakers
Voltage Rating - DC (VDC)	28
IP Rating	–
Approval Agency	SAE J553
