Manual Reset – 10-32 Stud

Name: Manual Reset - 10-32 Stud
SKU: MRCBP-V Gray
Availability: InStock

$7.80

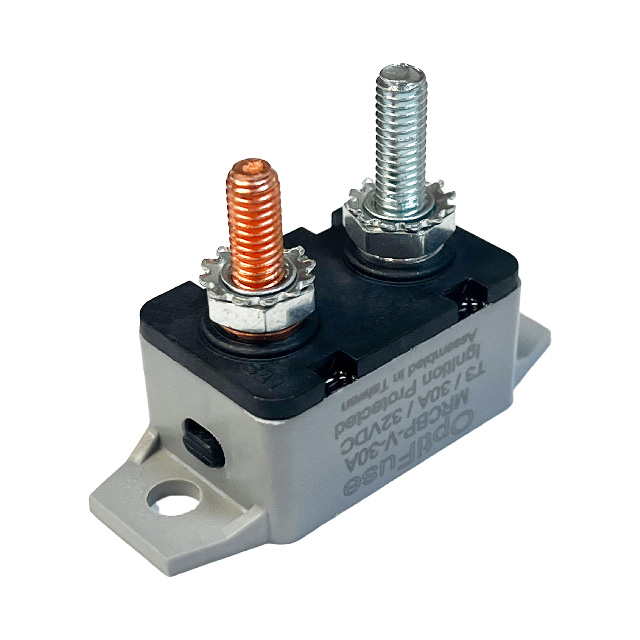

OptiFuse MRCBP-V Gray – 10-32 Stud (Shortstop Style) Circuit Breakers

Current Rating (A)

Clear

SKU: MRCBP-V Gray Category: Circuit Breakers

Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.
Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.
Ignition rated and SAE J1171 compliant for use in marine engine compartments, with preassembled brackets for convenient mounting when installed individually.

Dimensions	2 × 0.81 × 1.3 in
Current Rating (A)	10, 15, 20, 30, 40, 50
Reset Type	Manual Reset – Type III
Circuit Breaker Type	10-32 Stud (Shortstop Style) Circuit Breakers
Voltage Rating - DC (VDC)	32
IP Rating	IP 63
Approval Agency	SAE J553; SAE J1171
