Auto Reset – Color Coded
$7.10

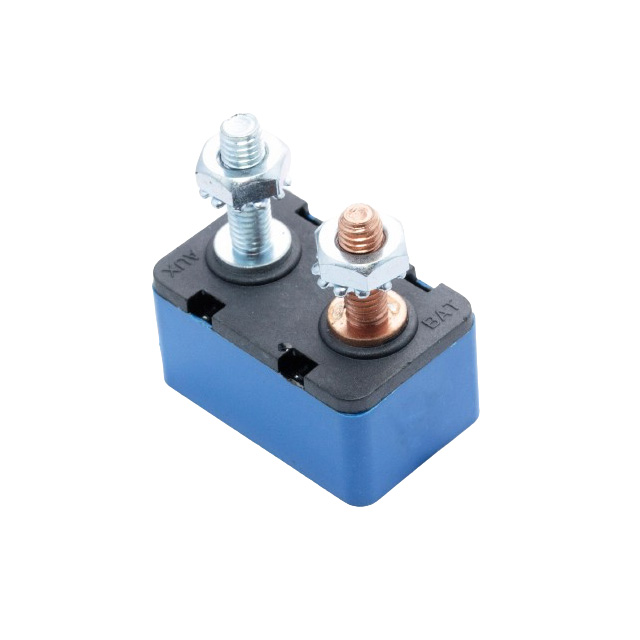

OptiFuse ACBP-N Color – 10-32 Stud (Shortstop Style) Circuit Breakers
SKU: ACBP-N Color
Category: Circuit Breakers
Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.
Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.
Ignition rated and SAE J1171 compliant for use in marine engine compartments, this series is easily mounted alongside similar non-bracket breakers in our CBB mounting brackets.
Designed with industry standard color coding to allow for easy amperage identification.
NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
| Dimensions | 1.25 × 0.8 × 1.3 in |
|---|---|
| Current Rating (A) | 15, 20, 25, 30, 40, 50 |
| Reset Type | Automatic Reset – Type I |
| Circuit Breaker Type | 10-32 Stud (Shortstop Style) Circuit Breakers |
| Voltage Rating - DC (VDC) | 32 |
| IP Rating | IP 63 |
| Approval Agency | SAE J553; SAE J1171 |
