6.3x32mm Glass – Fast
$0.89 – $1.34Price range: $0.89 through $1.34
OptiFuse FSA / FSA-P – 6.3 x 32 mm
SKU: FSA / FSA-P
Category: Fuses

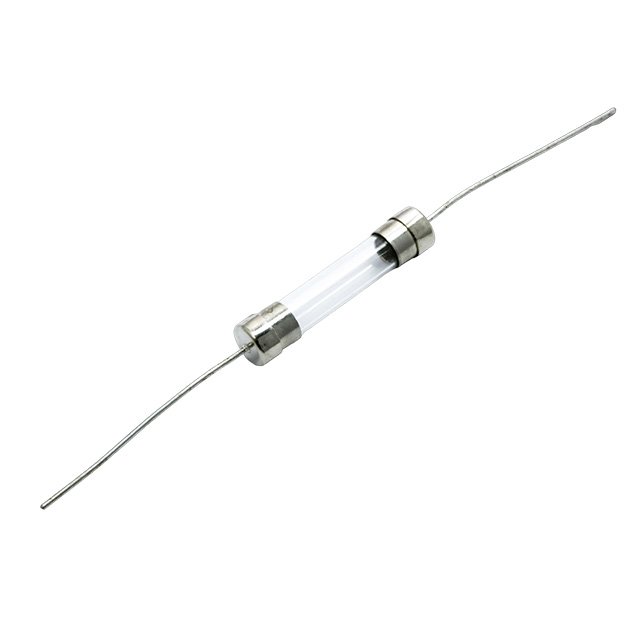

32mm long and 6.3mm in diameter, this fuse is fast acting with a glass body and is UL Listed/Recognized. Available with or without axial leads.
Commonly used in applications that are sensitive to changes in the flow of electricity, such as home appliances. Designed to open within seconds of being exposed to overloads and short circuits.
With a clear body that allows for visual checks of a damaged filament.
NEW: Select products are available in pill boxes and attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
| Dimensions | 0.2 × 0.2 × 1.25 in |
|---|---|
| Current Rating (A) | 0.1, 0.125, 0.15, 0.16, 0.2, 0.25, 0.3, 0.315, 0.4, 0.5, 0.5, 0.6, 0.75, 0.8, 1, 1, 1.5, 1.6, 2, 2.5, 3, 3.15, 3.5, 4, 5, 5, 6, 6.3, 7, 7.5, 8, 9, 10, 10, 12, 15, 20, 25, 30 |
| Fuse Type | Electronic Glass & Ceramic Fuses |
| Fuse Size/Group | 6.3 x 32 mm |
| Response Time | Fast |
| Voltage Rating - DC (VDC) | – |
| Major Safety Standards | UL/CSA |
| Approval Agency | cULus; UL 248 |
